Product Details:
|
| Product Name: | CNG Pressure Regulator | Work For: | CNG Cars |
|---|---|---|---|
| System: | CNG SPI System | Material: | Die Cast Aluminium Body |
| Color: | Silver And Blue | Quality: | 100% Professional Test |
| Certificate: | ISO 9001 | Warranty: | 1 Year |
| Highlight: | 180 HP CNG Pressure Regulator,SPI System CNG Pressure Regulator,SPI System CNG Pressure Reducer |
||

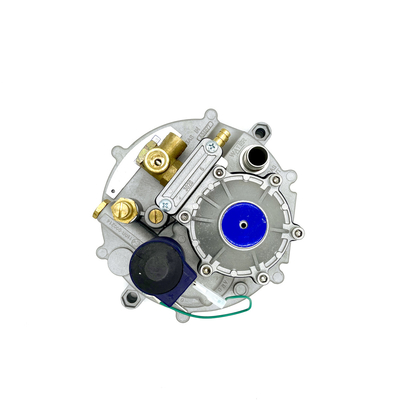

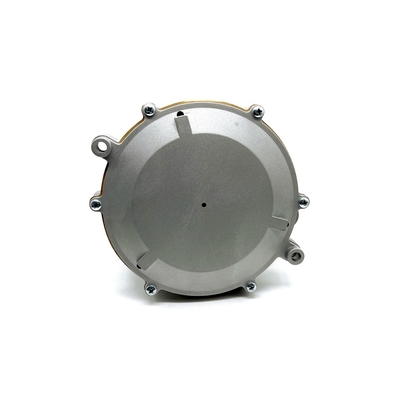

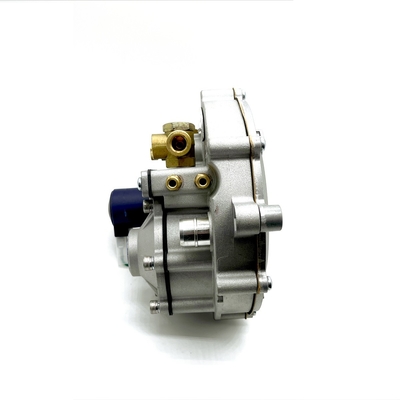

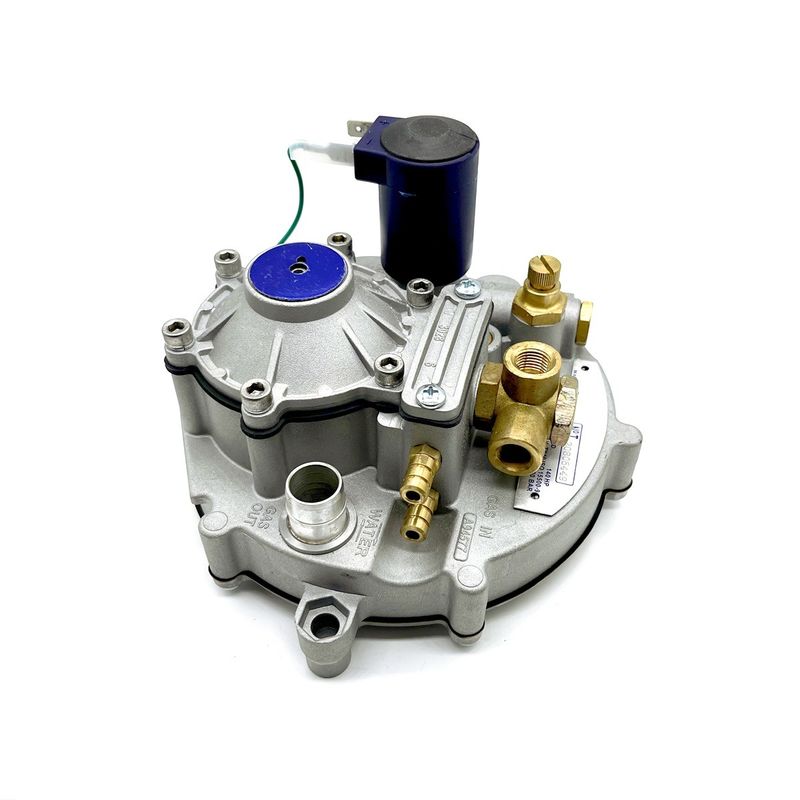

AT12 CNG reducer is used for CNG sequential injection systems. It has 2 stages for pressure
reducing and improved heating circuit. It has 2 possible water connection layouts for easy
installation. This model is equiped with a low pressure solenoid valve.
| Gas fuel type | CNG |
| Work for | CNG SPI system |
| Material | Die cast aluminium body |
| Size | 14cm*20cm*21cm |
| Weight | 2.2 kg |
| Max inlet pressure | 20 MPa |
| Coil voltage | 12 V DC |
| Inlet Connection | M12x1 |
| Outlet connection | Ø 19 mm |
| Coolant liquid connections | for rubber pipe Ø 8 mm |
| Working temperature | -40~120 °C |
| Engine power | 180 HP |
